The fully-quiped modular charger with open interfaces.
First deliveries expected end of June.
Pre-order
- SKU
- WARP4-XX-XX-XXXX-X
Description / WARP4 Charger
Model
Smart or Pro
The WARP4 Charger is available in two variants. Smart offers all the basic functions of a modern charger, Pro extends these with convenience and billing features.

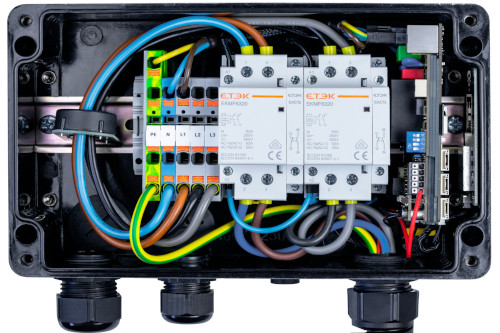

WARP4 Smart
- Eligible for subsidies
- LAN/WLAN, web interface
- NFC authorization, Autocharge
- Remote access & apps
- Phase switching (1ph/3ph)
- PV surplus charging & PV forecast data
- Dynamic electricity prices
- Static or dynamic load management
- Charge log without energy metering
- ISO15118
- Compatible with over 100 devices
- HTTP, MQTT, Modbus/TCP, OCPP, EEBUS

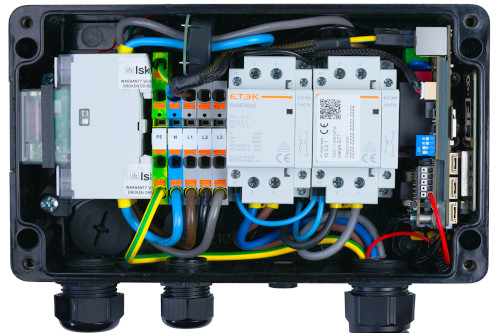

WARP4 Pro
All Smart functions, plus:
- Charging power measurement
- MID-calibrated electricity meter
- Charge log with energy metering
- Improved load management
- Reading the vehicle's state of charge (SoC)
- Prepared for bidirectional charging
Material
V4A stainless steel or powder-coated
The front panel of the WARP4 Charger is available in two finishes. Both variants are suitable for outdoor installation.

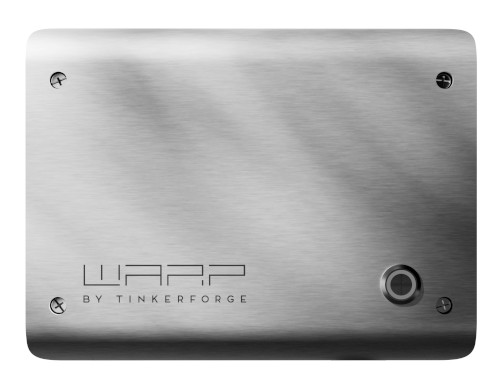

V4A stainless steel (brushed)
- High-quality brushed look
- Industry standard for demanding environments

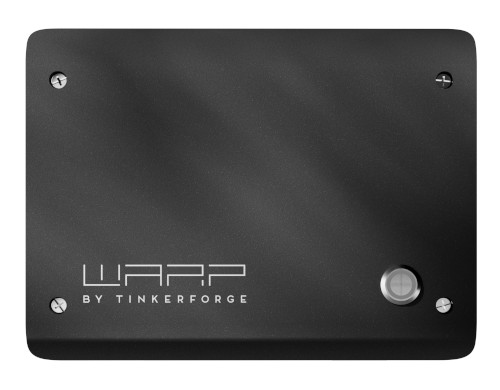

DB703 micaceous iron oxide finish
- Powder-coated in DB703 (premium micaceous iron oxide look)
- Micaceous iron oxide paint is particularly hard-wearing
- Classic, understated look
Type 2 cable
Charging power and cable length
The WARP4 Charger is delivered with a permanently attached type 2 cable. The charging power (11 kW or 22 kW) and the cable length (5 m or 7.5 m) are selected before production. Alternatively, we fit a cable of your choice during manufacturing.
11 kW
- Three-phase 16 A
- Suitable for most household connections
- Cable length: 5 m or 7.5 m
22 kW
- Three-phase 32 A
- Maximum AC charging speed
- Cable length: 5 m or 7.5 m
Custom cable
- Ideal for unusual connection situations
- You choose one of the Metron cables with a length of up to 15 m (optionally with Tesla Charge Port Opener)
- We order the cable from Metron (Made in EU) and fit it during manufacturing
- Note: the delivery time including ordering and manufacturing is extended by approx. 10 working days
Custom Metron cable directly from our shop
Laser engraving
Standard or custom engraving
The front panel is laser-engraved at the factory. By default, and at no extra charge, you receive our "WARP by Tinkerforge" engraving for a consistent appearance across all WARP chargers. Alternatively, we apply your own design.

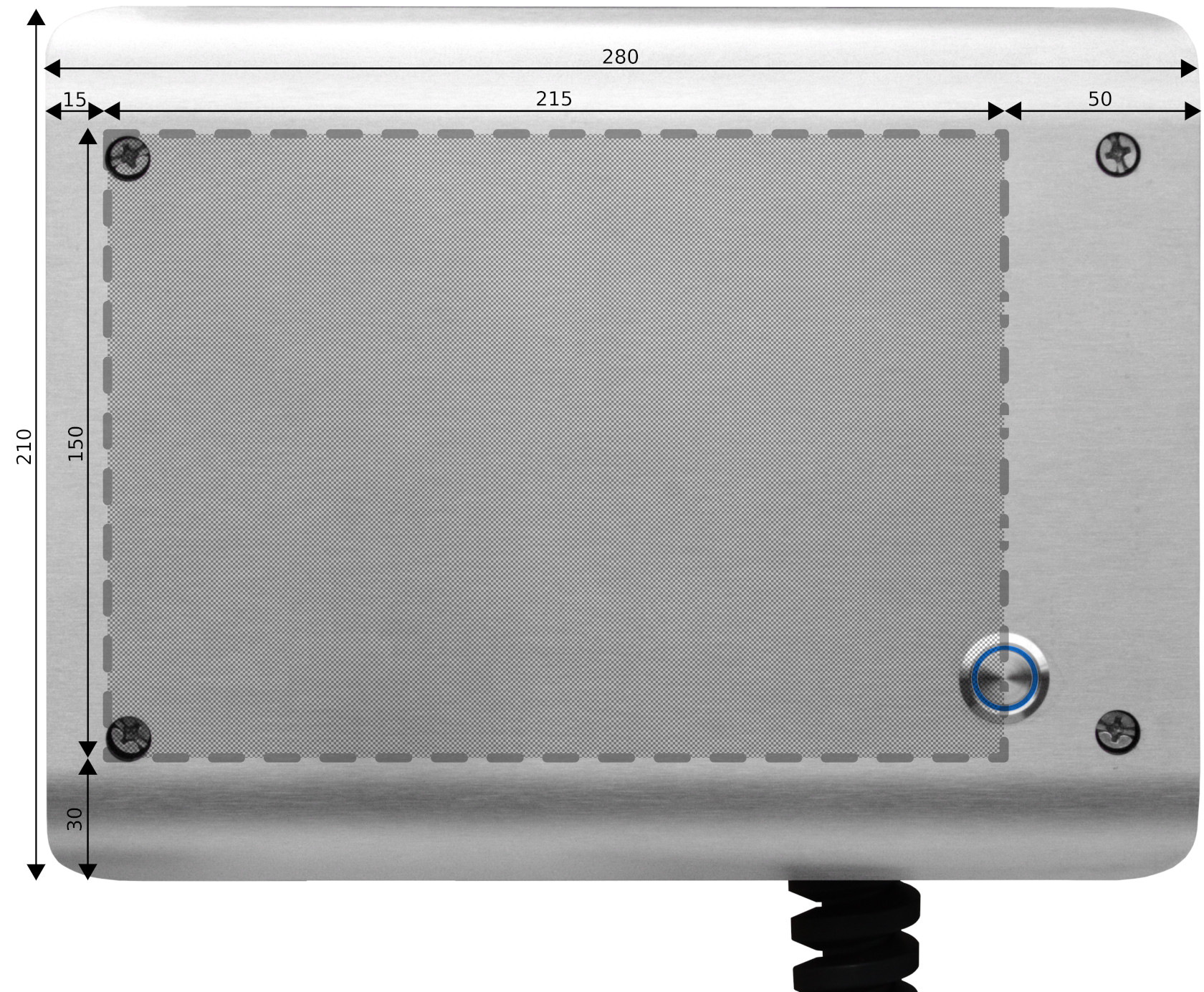

Custom engraving
- Format: SVG, single-color (vector)
- Maximum size: 150 mm × 215 mm (width × height)
- Position: left side of the front panel (see illustration)
- We check the technical feasibility after receiving your order
How to order: Send your SVG file, stating your order number as well as the desired position and size within the engraving window shown, by email to sales@tinkerforge.com. We will confirm the technical feasibility before production begins.
Scope of delivery
What's included
Every WARP4 Charger is delivered fully preconfigured and ready to operate. The scope of delivery includes:
- WARP4 Charger (Smart or Pro, as configured)
- Permanently attached type 2 charging cable in the selected length and charging power
- Drilling template
- Operating instructions (printed)
- Charger test report
- Three NFC cards
More information about the WARP Charger is available at warp-charger.com. Detailed documentation is available at docs.warp-charger.com.
Accessories
Matching accessories from our shop
Practical accessories for your WARP4 Charger, available to order directly.
Delivery time
When your WARP4 Charger will be delivered
We keep frequently ordered configurations in stock and ship them immediately. All other variants are manufactured to order from prefabricated modules. The following overview gives an indication of the expected delivery time.
From stock
Frequently ordered configurations are ready to ship immediately.
Made to order
Your charger is assembled from prefabricated sets (Smart or Pro DIN-rail module, housing, selected cable), fully tested and packed ready for shipping.
approx. 2-3 working days
Special equipment
- Custom laser engraving: +5 working days after approval of your design
- Custom Metron cable: +10 working days (ordering, goods receipt, assembly)
